Kubernetes architecture
Source : https://learncloudnative.com/blog/2020-05-26-getting-started-with-kubernetes-part-1 Start Kubernetes - Peter Jausovec

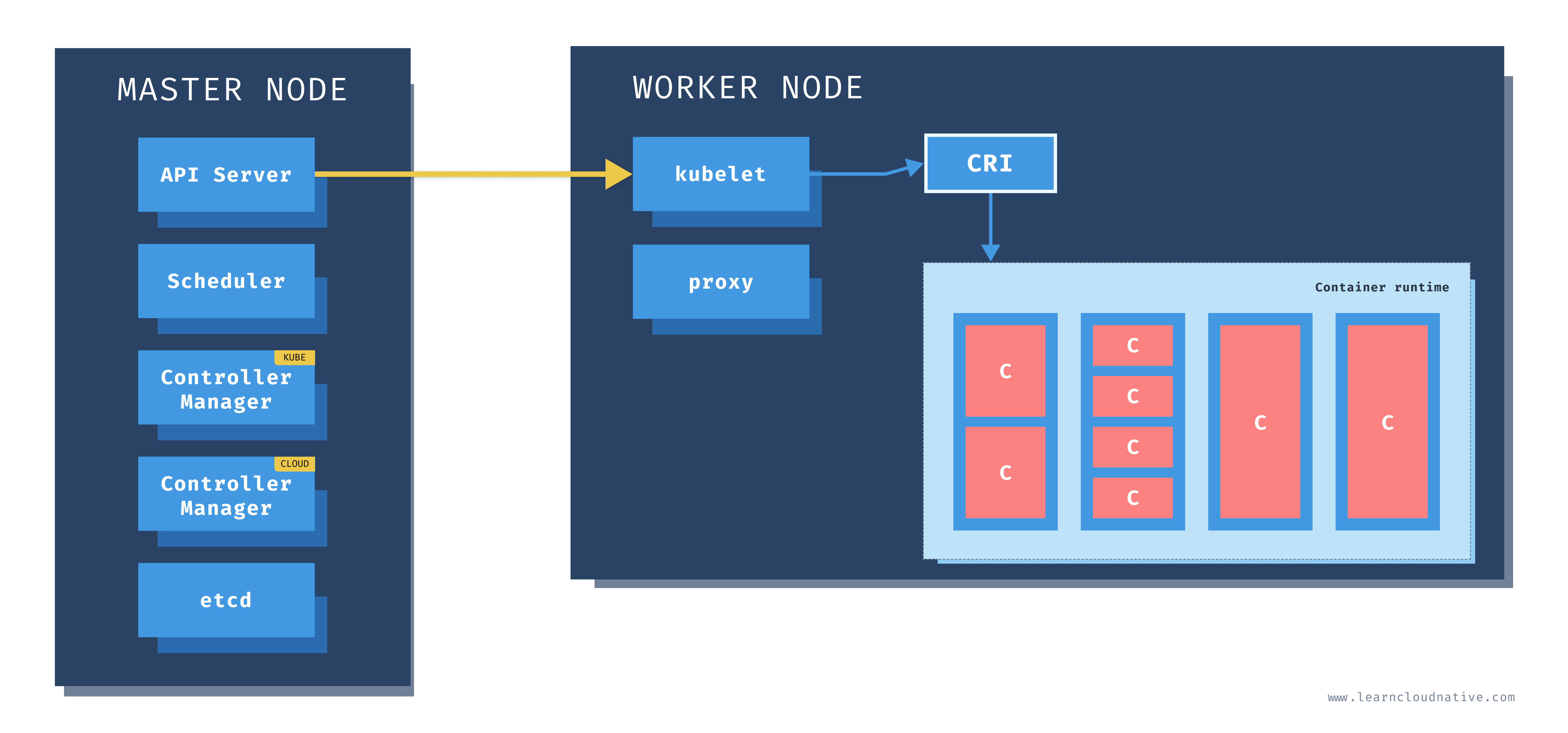

A Kubernetes cluster is a set of physical or virtual machines and other infrastructure resources needed to run your containerized applications. Each machine in a Kubernetes cluster is called a node. There are two types of node in each Kubernetes cluster: - Master node(s): this node hosts the Kubernetes control plane and manages the cluster - Worker node(s): runs your containerized applications
Master Nodes

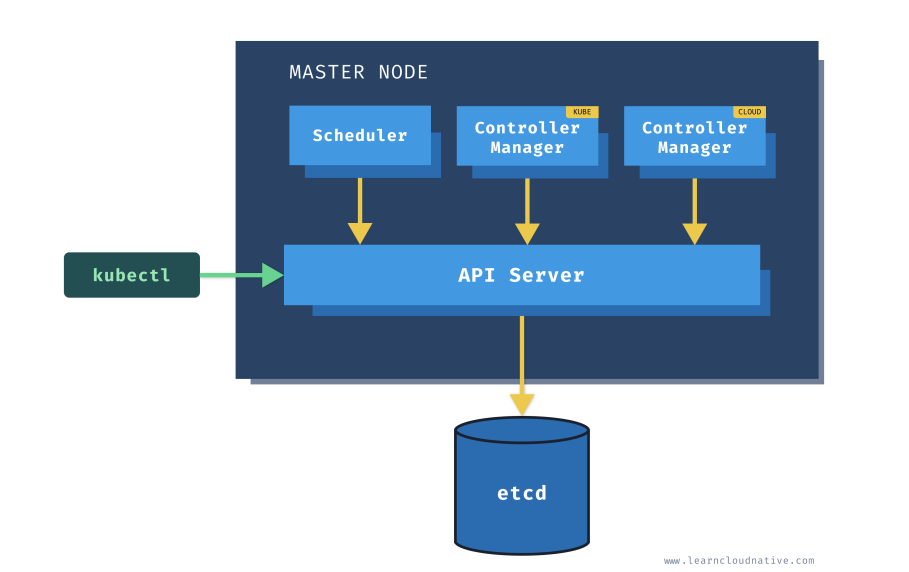

One of the main components on the master node is called the API server. The API server is the endpoint that Kubernetes CLI (kubectl) talks to when you’re creating Kubernetes resources or managing the cluster. The scheduler component works with the API server to schedule the applications or workloads on to the worker nodes. It also knows about resources available on the nodes and the resources requested by the workloads. Using this information, it can decide on which worker nodes your workloads end up
he kube controller manager runs multiple controller processes. These controllers watch the state of the cluster and try to reconcile the current state of the cluster (e.g., "5 running replicas of workload A") with the desired state (e.g. "I want ten running replicas of workload A").
Worker nodes

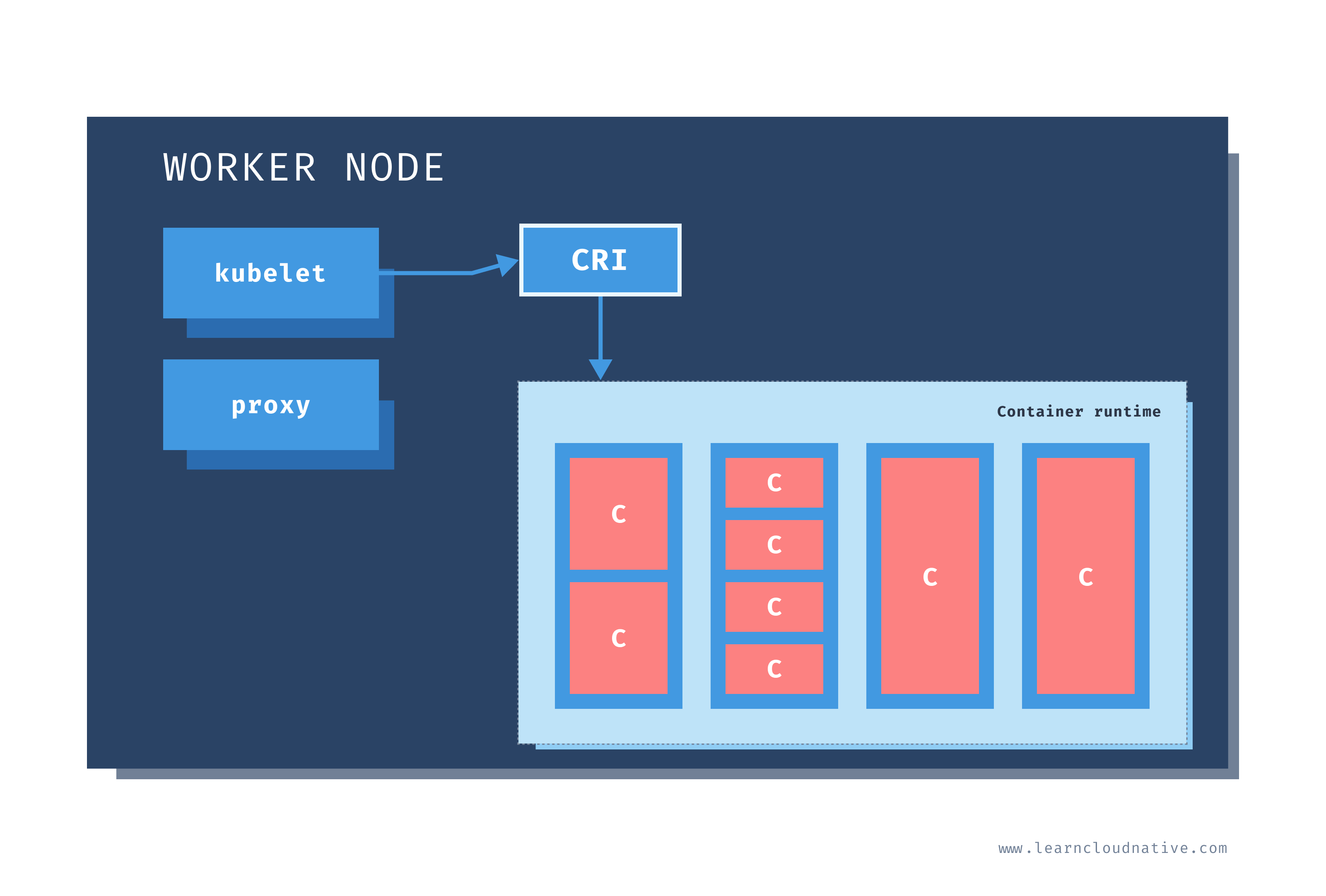

worker nodes have different components running as well. The first one is kubelet. This service runs on each worker node, and its job is to manage the container. It makes sure containers are running and healthy, and it connects back to the control plane. Kubelet talks to the API server, and it is responsible for managing resources on the node it’s running on.
When you add a new worker node to the cluster, the kubelet introduces itself to the API server and provides its resources (e.g., "I have X CPU and Y memory"). Then, it asks the API server if there are any containers to run. You can think of the kubelet as a worker node manager. Kubelet uses the container runtime interface (CRI) to talk to the container runtime
The containers are running inside pods, represented by the blue rectangles in the above figure (containers are the red rectangles inside each pod). A pod is the smallest deployable unit you can create, schedule, and manage on a Kubernetes cluster. A pod is a logical collection of containers that make up your application. The containers running inside the same pod also share the network and storage space. Each worker node also has a proxy that acts as a network proxy and a load balancer for workloads 8 running on the worker nodes. Through these proxies, the external load balancer redirects client requests to containers running inside the pod.
